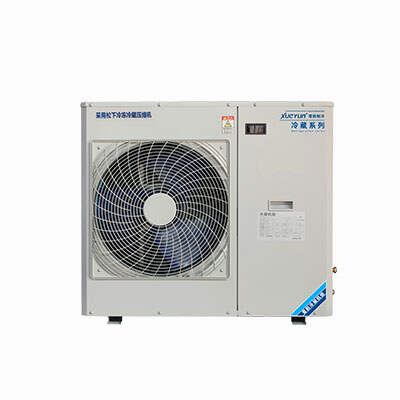

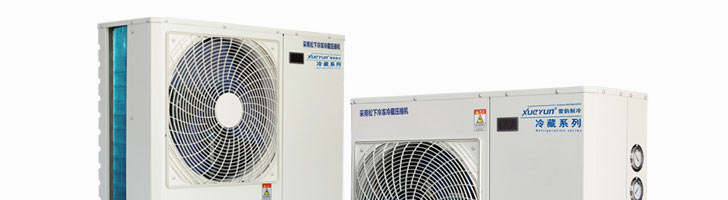

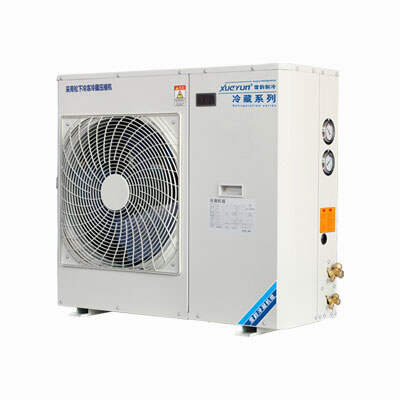

Panasonic condensing unit with scroll compressor runs productively with multi-step control that can be very serviceable in conserving power. It is manifested with malfunction alarm and probe function allowing users to keep a check on its working. In addition to this, it has an advantage over many other compressors as it has controllable fan speed with inhaling overheat of 10 ⁰C. Moreover, it ensures a wide cooling capacity with storage temperature shifting between 20~-25 ⁰C.

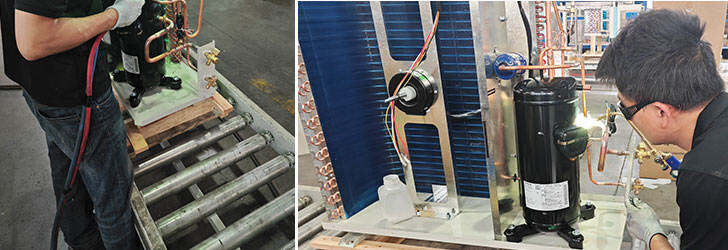

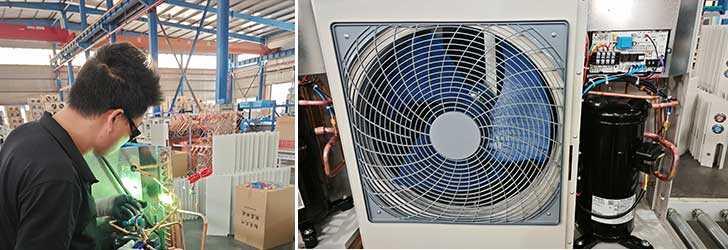

We invariably assemble and examine all Panasonic Condensing Unit and Cool Room Condenser Unit components discreetly to maintain OEM-QUALITY standards.

Panasonic Condensing Unit Features
·  Use orginal Panasonic scroll compressor.

·  Products adopt vertical box-type structure, compact structure design, excellent appearance;

·  With multi protections including phase protection, phase lack, over current, too constant start of compressor, discharge

·  temp and system high/low temp.·  With fan speed regulator, to adjust condensing fan according to condensing temp.

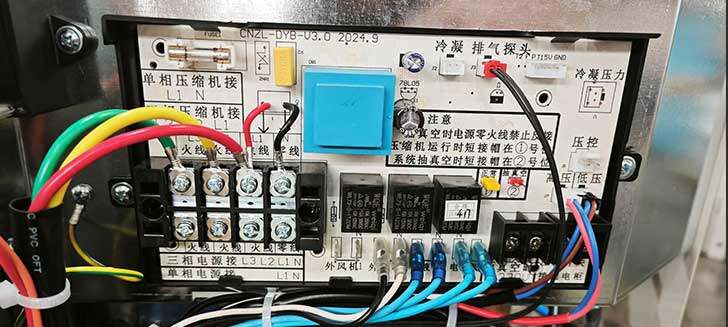

·  Panasonic condenser with operation data display function.

·  Cool room condenser unit with system alarm function.

·  The operation board can be installed apart for remote control.

·  Panasonic condensing unit with soundproof cotton inside for Residential area use, low noise.

·  It can meet the requirements of R22, R404A, R507A, R448A, R449A and other refrigerants.

Panasonic Condensing Unit Components

· Compressor             · B Type Unit                           · Condenser

· Reservoir                 · Oil Separator                         · Filter

· Magnetic valve        · Air Control valve                   · Sight Glass

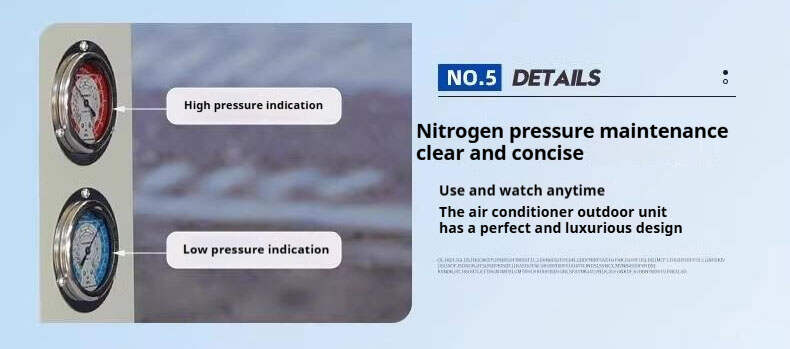

· Pressure gauge       · Pressure controller

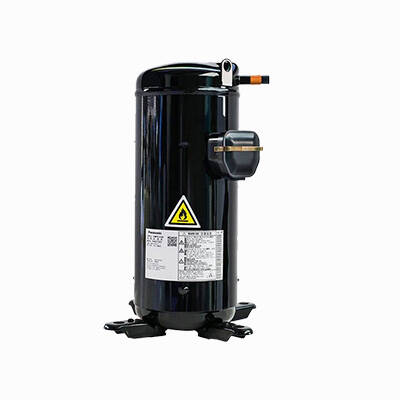

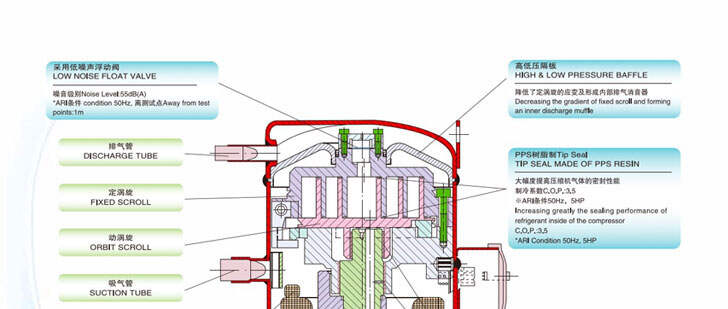

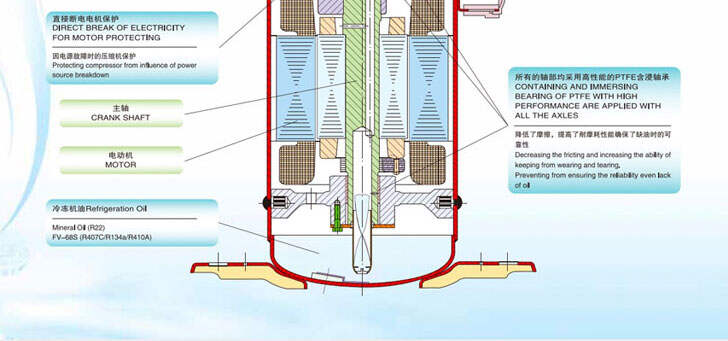

Panasonic Compressor Structure

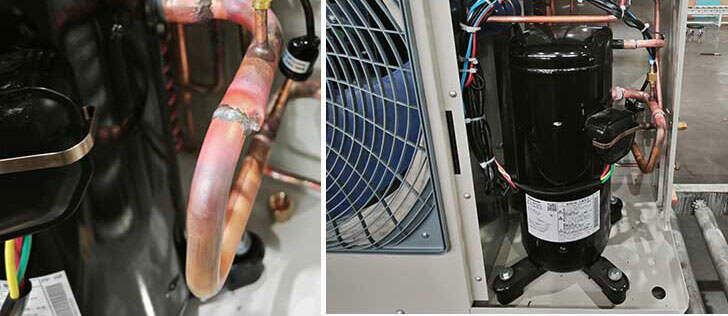

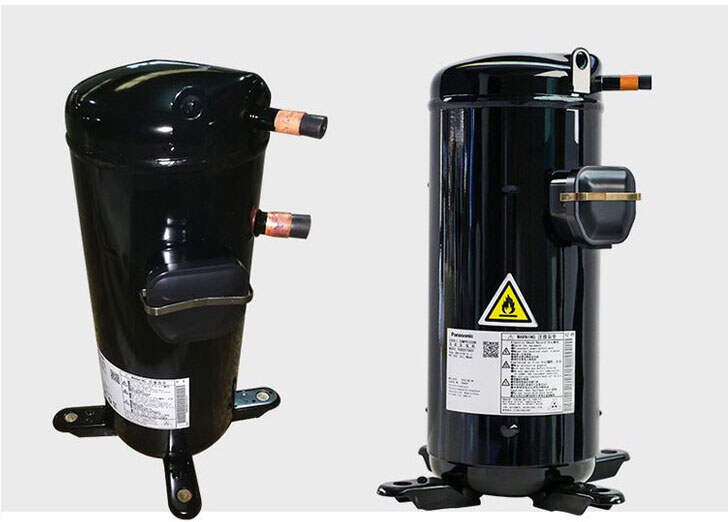

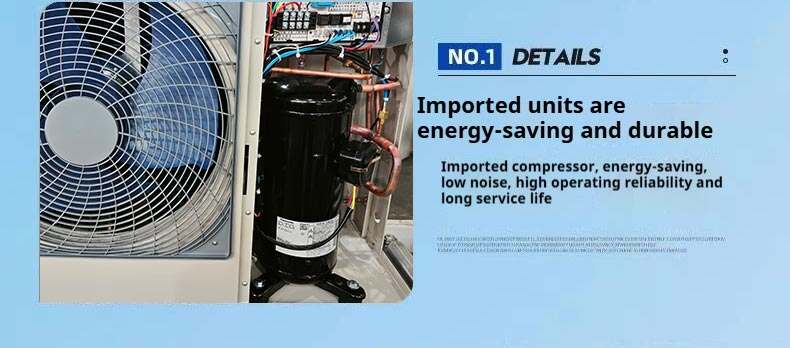

Actual Photo of Panasonic Compressor

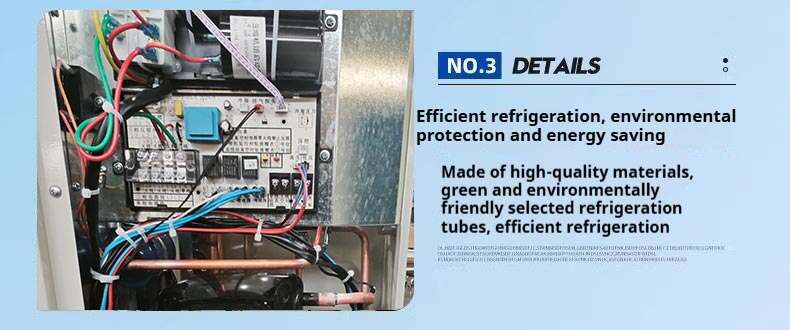

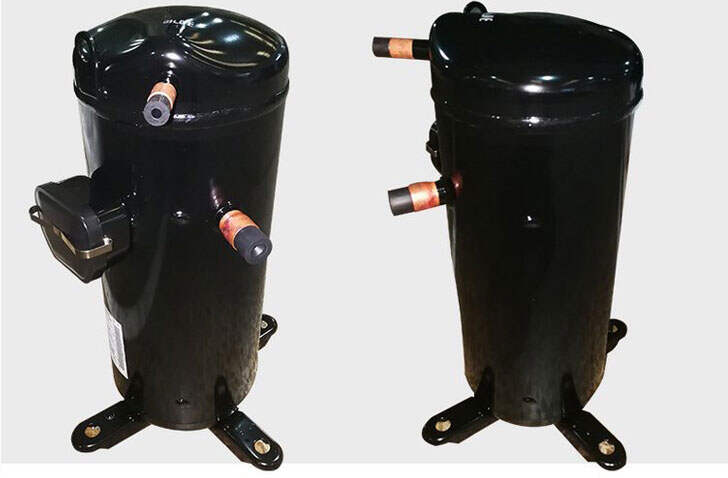

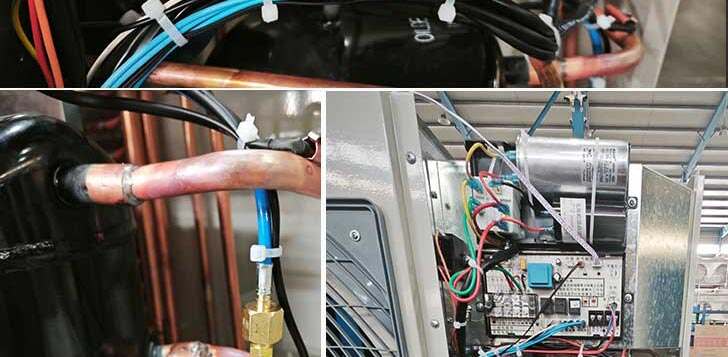

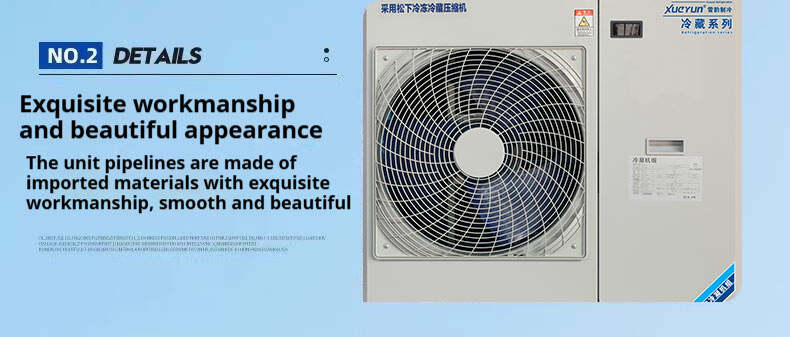

Detail Display of Panasonic Compressor

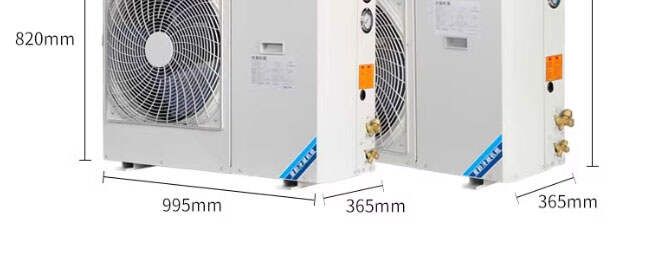

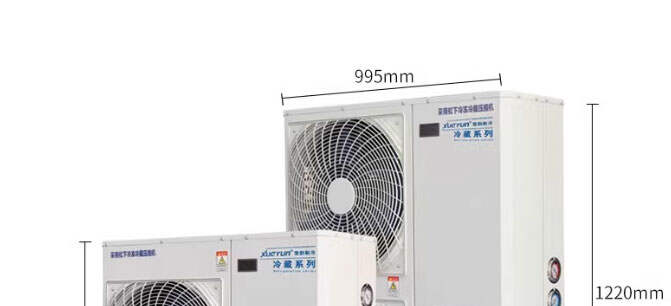

Panasonic Compressor Size

Cool Room Condenser Unit Parameters

*Contact us for more models and parameters
